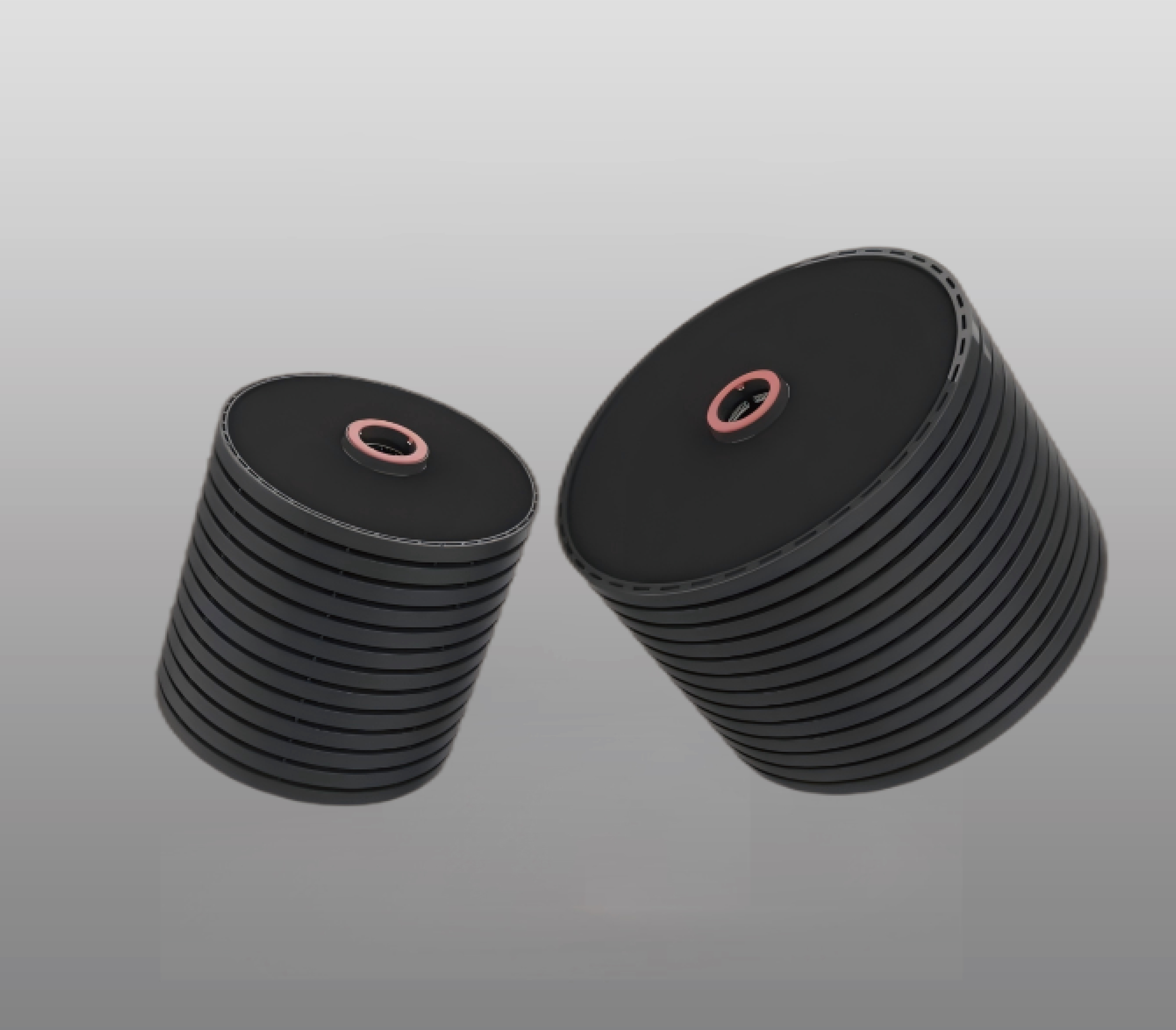

Activated Carbon Series Stacks
Product Characteristics
|
Product Specifications |
Product Series |
16" 8-Layer Single -Membrane Stack |
16" 13-Layer Single -Membrane Stack |
16" Other Customized Specifications |
|
Effective Filtration Area |
1.8 m2 |
3 m2 |
Selectable |
|
|
Product Height |
204 mm |
275 mm |
Specification-dependent |
|
|
Materials of Construction |
Filter Plate Composition |
Cellulose, Filter Aids, Resin, Activated Carbon |
||
|
Frame and Cover Material |
Glass Fiber Reinforced Polypropylene |
|||
|
Stainless Steel |
316L |
|||
|
Silicone Gasket |
Silicone Rubber |
|||
|
Working characteristics |
Max. Operation Pressure |
3.0 bar @ 25℃ |
||
|
Max. Pressure Differential |
Forward：2.0 bar @ 25℃ Reverse：Not recommended |
|||
|
Indirect Food Additive Complian |
All components comply with FDA 21 CFR 177-182 requirements for food contact materials |
|||
|
Toxicity Certification |
All materials meet USP <88> Class VI biological safety requirements for in vivo use |
|||
